Hey there! As a supplier of High Speed Vertical Lathes, I've got a bunch of cool stuff to share with you about chip breaking mechanisms in these machines. It's super important to understand how chips break during the machining process, as it can significantly impact the efficiency, quality, and safety of your operations.
The Basics of Chip Breaking
First off, let's talk about what chip breaking is all about. When you're using a High Speed Vertical Lathe to cut metal, the cutting tool removes material from the workpiece, creating chips. These chips can be long and stringy, which can cause a whole bunch of problems. They can get tangled around the cutting tool, the workpiece, or even the machine itself, leading to poor surface finish, tool wear, and potential damage to the machine. That's where chip breaking comes in. It's the process of breaking these long chips into smaller, more manageable pieces.
Different Chip Breaking Mechanisms
Mechanical Chip Breaking
One of the most common chip breaking mechanisms is mechanical chip breaking. This involves using a cutting tool with a special geometry or a chip breaker insert. The chip breaker is designed to force the chip to curl and break as it is formed. For example, some cutting tools have grooves or notches on the rake face. As the chip is formed, it hits these features, causing it to deform and eventually break.
Let me give you an analogy. Think of it like trying to break a long piece of spaghetti. If you just pull on it, it's hard to break. But if you bend it at a certain point, it snaps easily. That's exactly what the chip breaker does to the chip. It creates a point of stress in the chip, making it break into smaller pieces.
There are different types of mechanical chip breakers, such as step-type, groove-type, and combined-type. Each type has its own advantages and is suitable for different machining conditions. For instance, step-type chip breakers are great for rough machining, where you need to remove a large amount of material quickly. Groove-type chip breakers, on the other hand, are more suitable for finishing operations, where you want a better surface finish.
Thermal Chip Breaking
Another interesting chip breaking mechanism is thermal chip breaking. This method relies on the heat generated during the cutting process. When the cutting tool cuts into the workpiece, a lot of heat is produced at the cutting edge. This heat can cause the chip to become soft and brittle in certain areas. As the chip is formed, these weak areas break, resulting in shorter chips.
Imagine you're heating up a piece of metal until it's red-hot. Then, if you try to bend it, it's much easier to break than when it's cold. That's the principle behind thermal chip breaking. However, controlling the heat is crucial. If there's too much heat, it can damage the cutting tool and the workpiece. So, proper cooling and lubrication are essential when using thermal chip breaking.
Hydraulic Chip Breaking
Hydraulic chip breaking is also an option. In this mechanism, a high-pressure coolant is used to break the chips. The coolant is directed at the cutting zone, and the force of the coolant jet helps to break the chips into smaller pieces. It's like using a powerful water jet to break up a pile of rocks.
The advantage of hydraulic chip breaking is that it can work well in situations where mechanical or thermal chip breaking is not effective. For example, when machining materials that are difficult to chip break, such as some superalloys, hydraulic chip breaking can be a great solution.
Importance of Chip Breaking in High Speed Vertical Lathes
Now, you might be wondering why chip breaking is so important in High Speed Vertical Lathes. Well, there are several reasons.
Improved Surface Finish
When the chips are long and stringy, they can drag across the surface of the workpiece, leaving behind scratches and marks. This can result in a poor surface finish. By breaking the chips into smaller pieces, they are less likely to cause damage to the workpiece surface, leading to a smoother and more accurate finish.
Reduced Tool Wear
Long chips can also cause excessive wear on the cutting tool. As they wrap around the tool, they can increase the friction and heat, which can lead to faster tool wear. By breaking the chips, the cutting tool is subjected to less stress and wear, which means it lasts longer and you don't have to replace it as often.
Enhanced Machine Safety
Long chips can be a safety hazard. They can get caught in the moving parts of the machine, causing jams and potential damage. In some cases, they can even fly out of the machine, posing a risk to the operator. By breaking the chips into smaller pieces, the risk of these safety issues is significantly reduced.
Our High Speed Vertical Lathes and Chip Breaking
At our company, we understand the importance of effective chip breaking. That's why our High Speed Vertical Lathes are designed with the latest chip breaking technologies. We offer a wide range of cutting tools with different chip breaker geometries to suit various machining needs.
For example, our New CNC Vertical Lathe is equipped with high-quality cutting tools that are optimized for chip breaking. Whether you're machining steel, aluminum, or other materials, these tools can ensure that the chips are broken into manageable pieces, improving the overall machining efficiency.
Our CKG516 CNC Vertical Lathe also features advanced chip breaking mechanisms. It uses a combination of mechanical and hydraulic chip breaking to provide excellent chip control, even in challenging machining conditions.

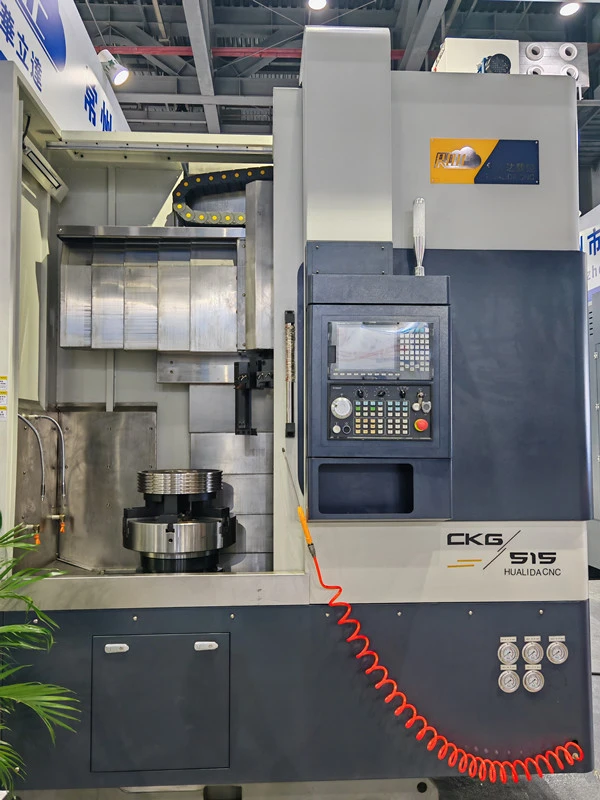

And if you're looking for a more versatile option, our CNC Vertical Turning Lathe is a great choice. It allows you to adjust the cutting parameters and select the appropriate chip breaker inserts to achieve the best chip breaking results for your specific application.
Contact Us for More Information
If you're interested in learning more about our High Speed Vertical Lathes and how they can help you with your chip breaking needs, don't hesitate to get in touch. We have a team of experts who can provide you with detailed information and advice on the best solutions for your machining operations. Whether you're a small workshop or a large manufacturing facility, we can offer the right equipment and support to meet your requirements. So, reach out to us today and let's start a conversation about how we can improve your machining processes!
References
- "Machining Handbook" by Oberg et al.
- "Cutting Tool Technology" by Stephenson and Agapiou.
- "Advanced Manufacturing Processes" by Kalpakjian and Schmid.
